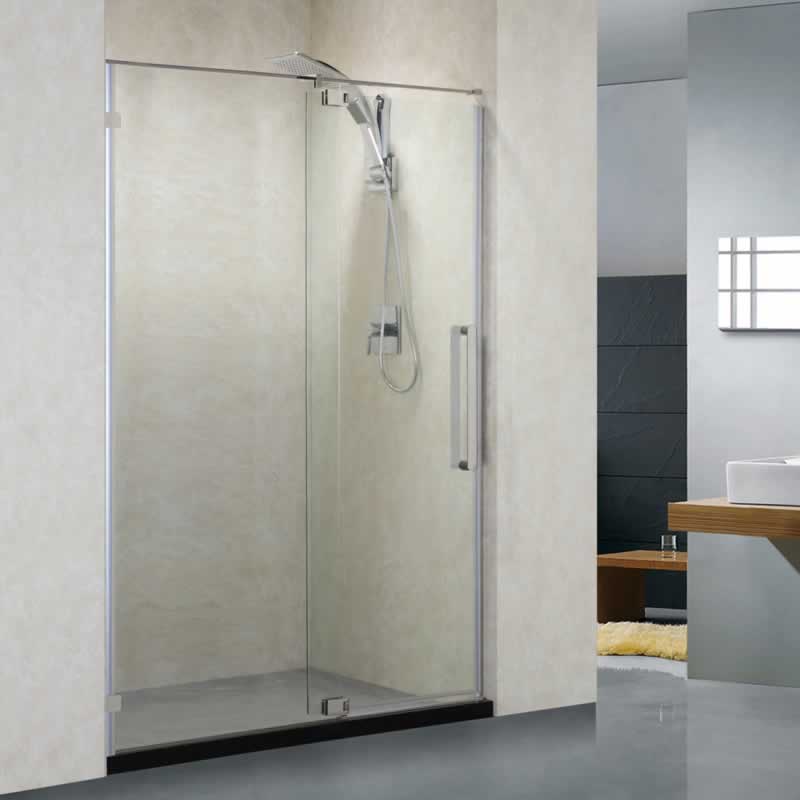

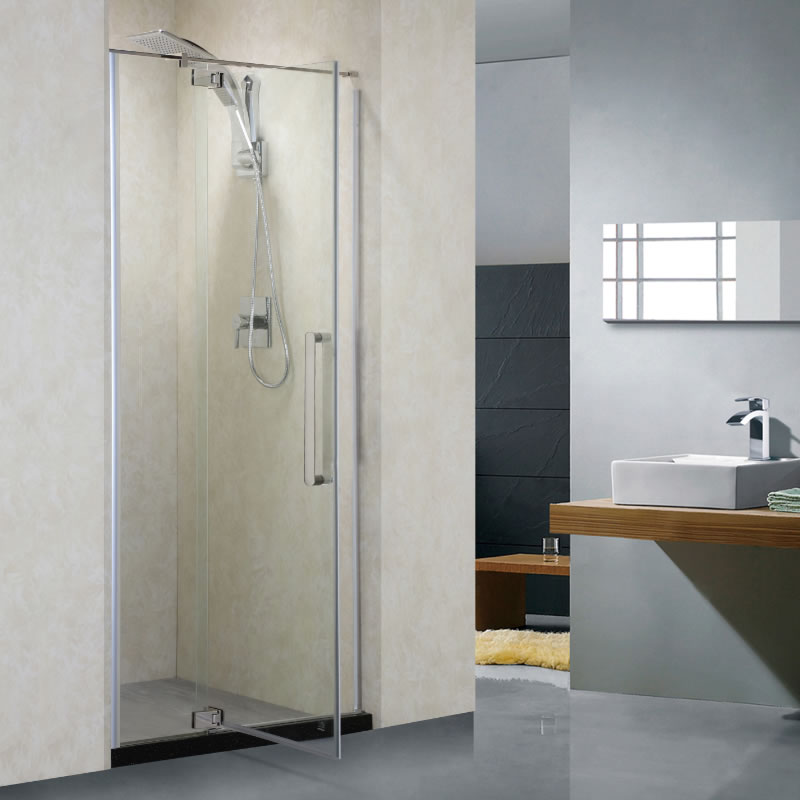

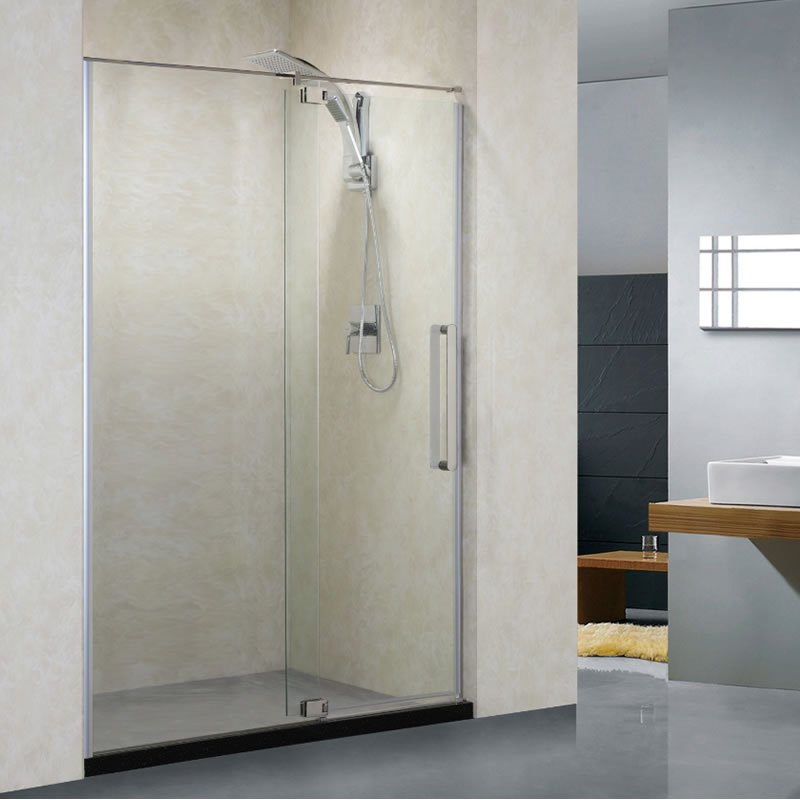

LY9701
Model Number:LY9701

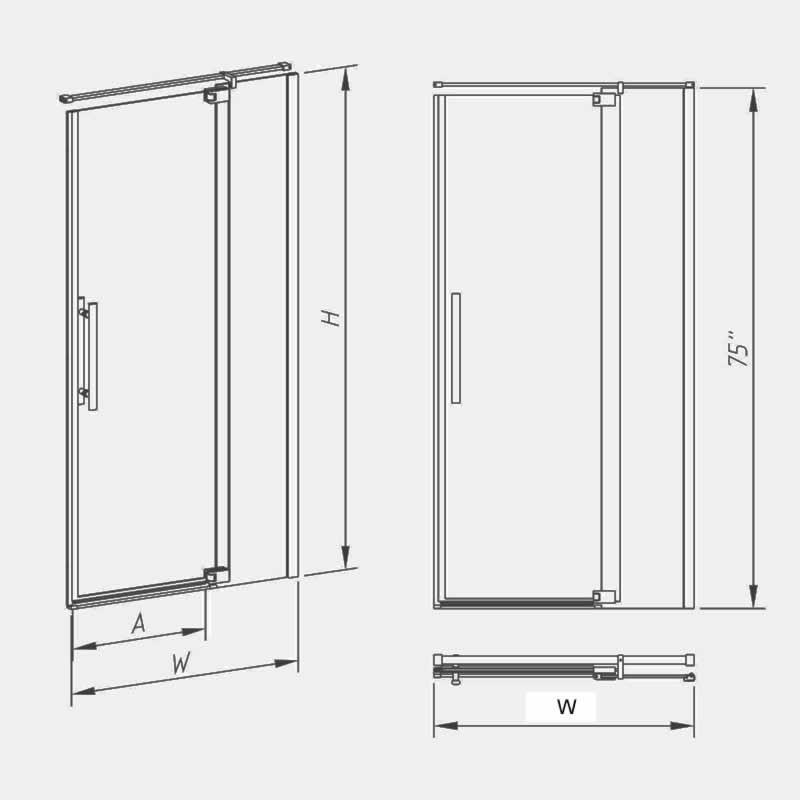

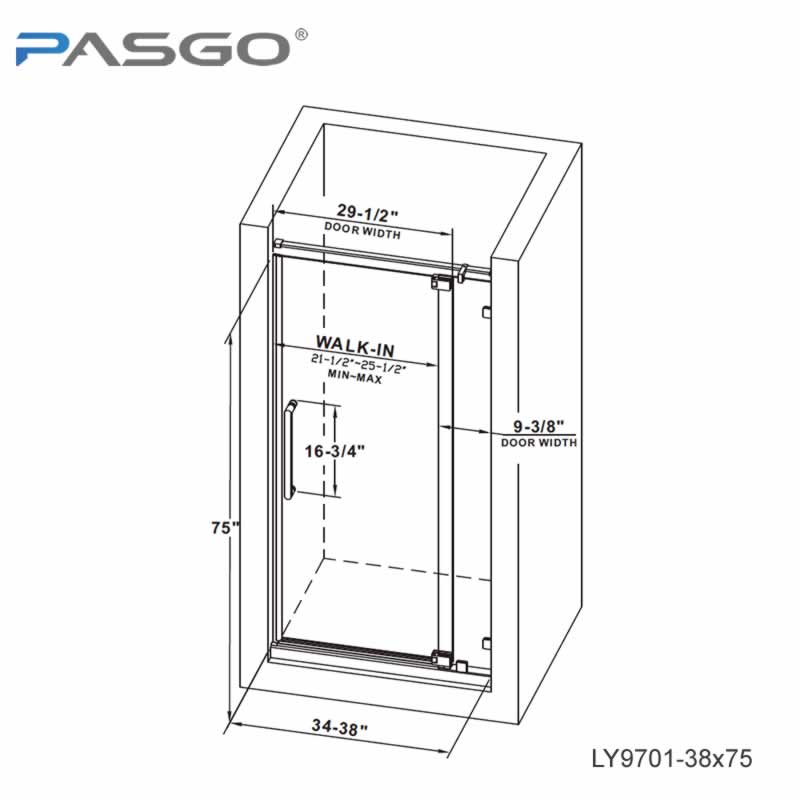

Model Size:
|

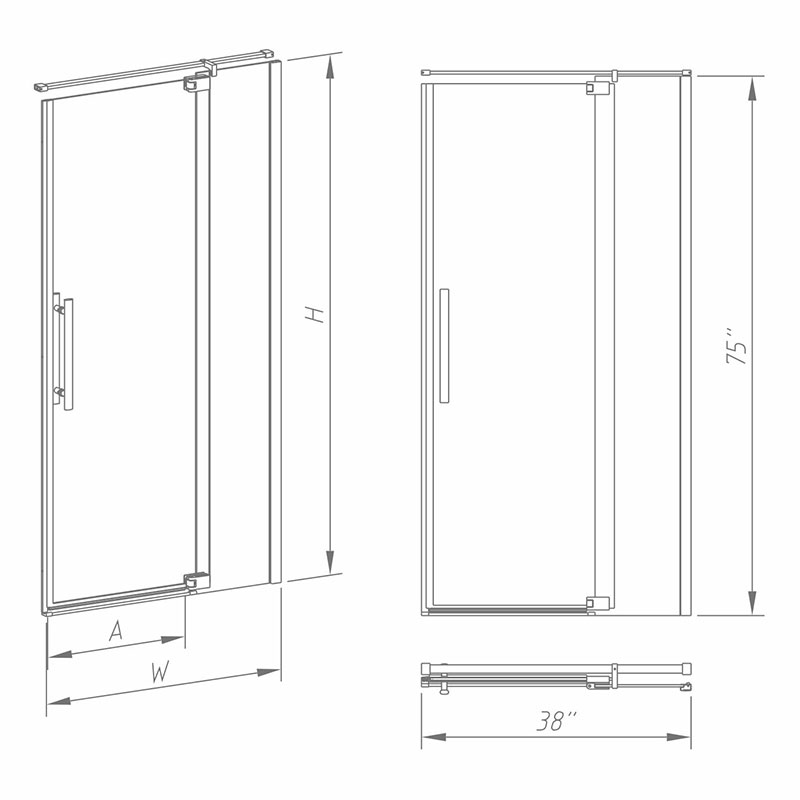

Walk-In Opening:
|
34-38 in. W x 75 in. H
|
17-3/4 in.~21-3/4 in.
|
39-43 in. W x 75 in. H
|
17-3/4 in.~21-3/4 in.
|
44-48 in. W x 75 in. H
|
17-3/4 in.~21-3/4 in.
|
49-54 in. W x 75 in. H
|
20-1/2 in.~25-1/2 in.
|
55-60 in. W x 75 in. H
|
20-1/2 in.~25-1/2 in.
|
Configuration consists of:
Stationary
Panel and Sliding Door
Glass:
Premium
5/16 in. (8mm) thick certified clear tempered
glass
- Waterproof and anti-fouling explosion-proof film
- Frameless glass design creates an open, airy feeling

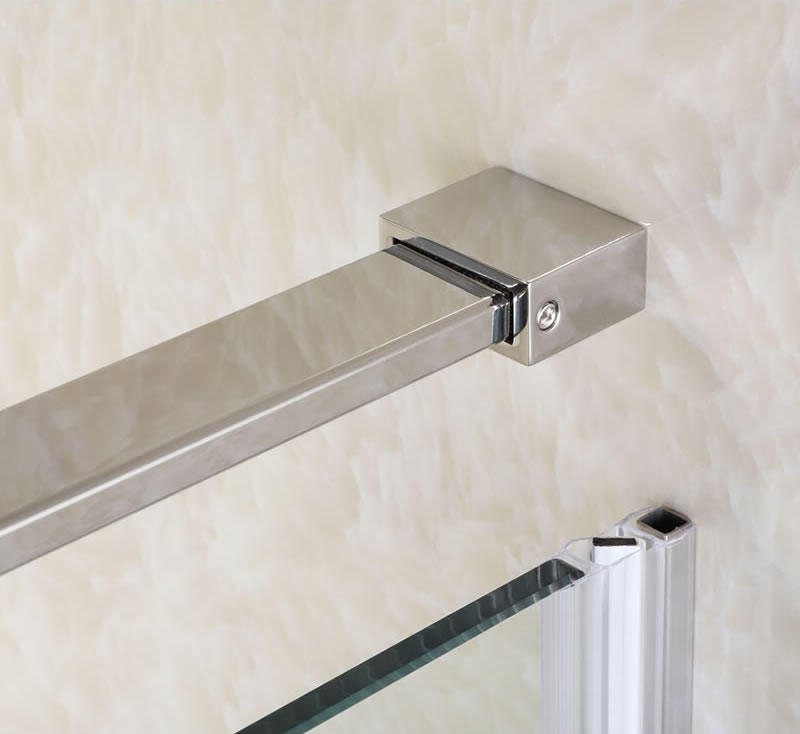

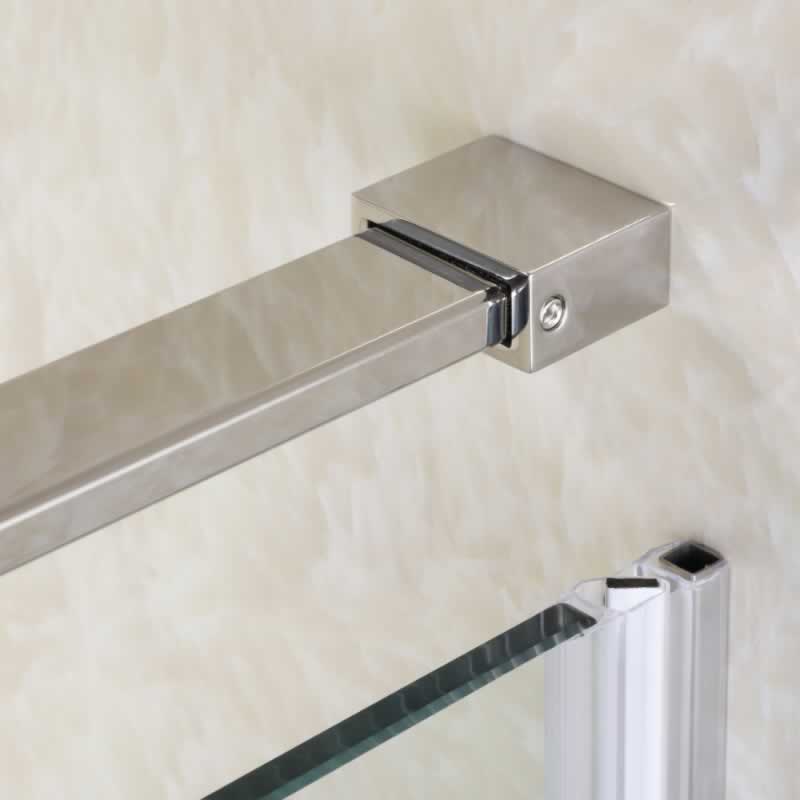

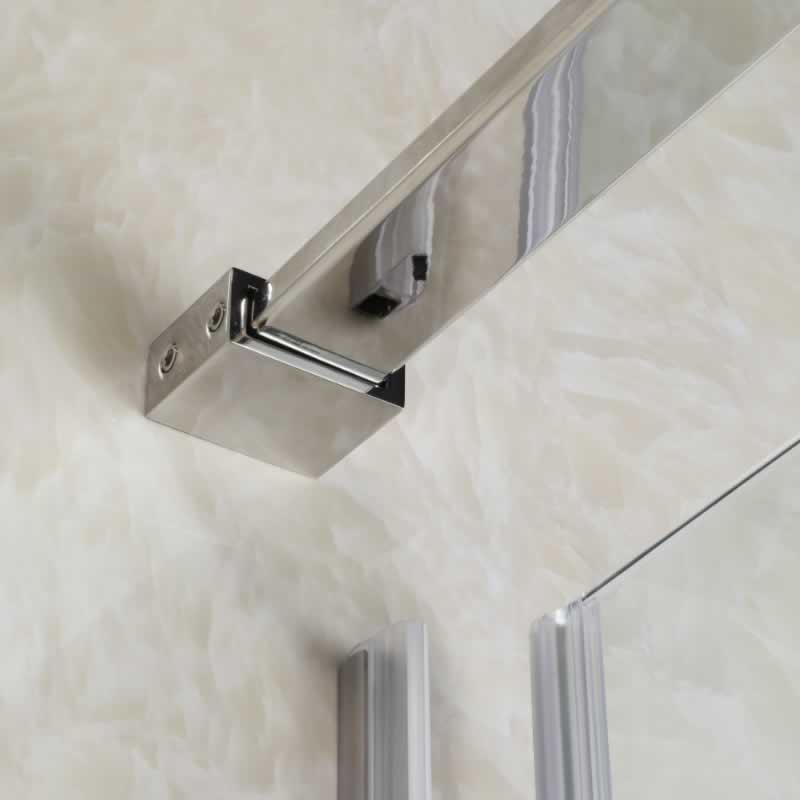

- Stainless Steel Top guide bar can be trimmed up to4 in. for width adjustment, please refer
to the Adjustment Calculations
- Reversible for a right or left door opening installation
Hardware Finish:

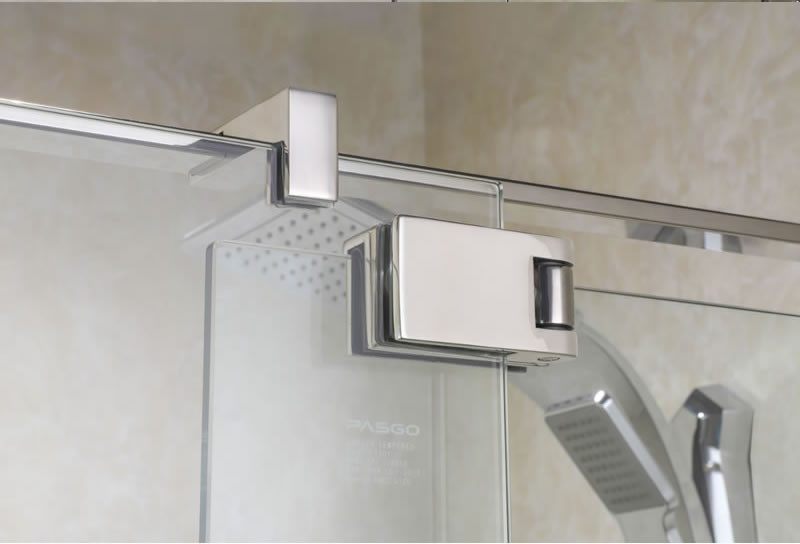

Polished Chrome

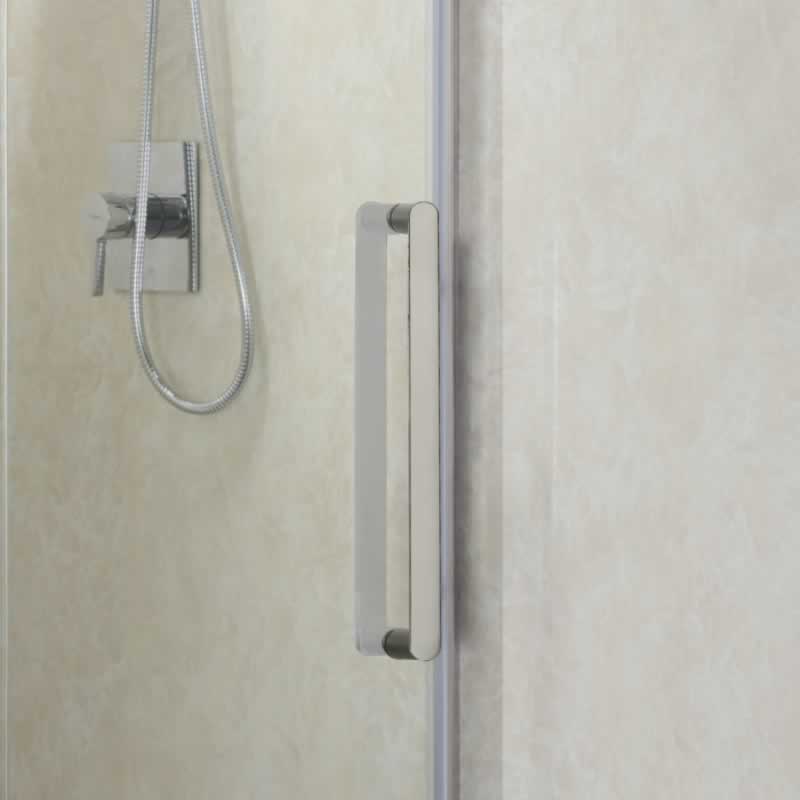

Brushed Nickel

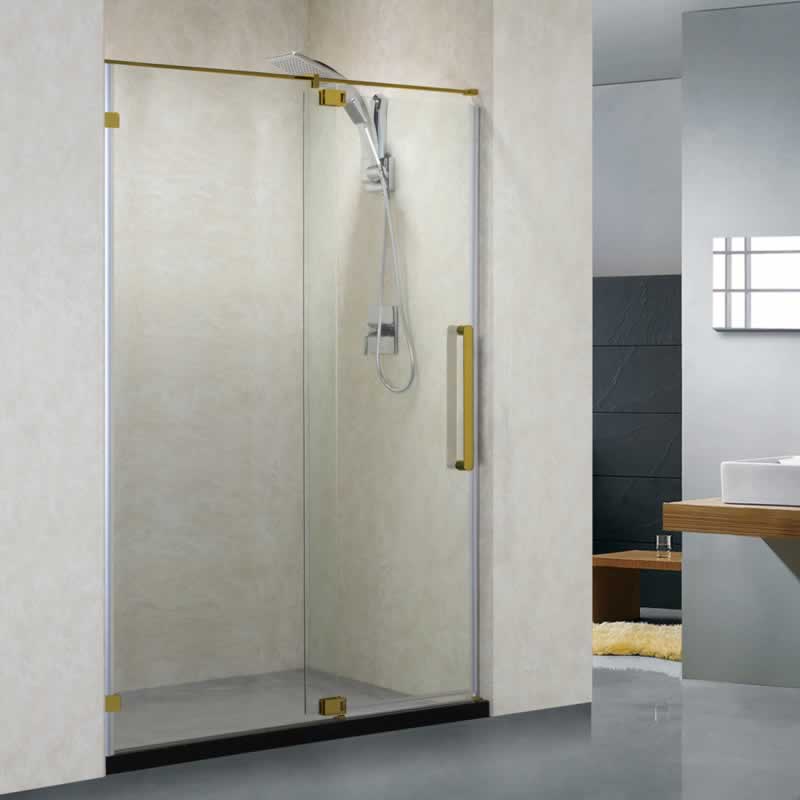

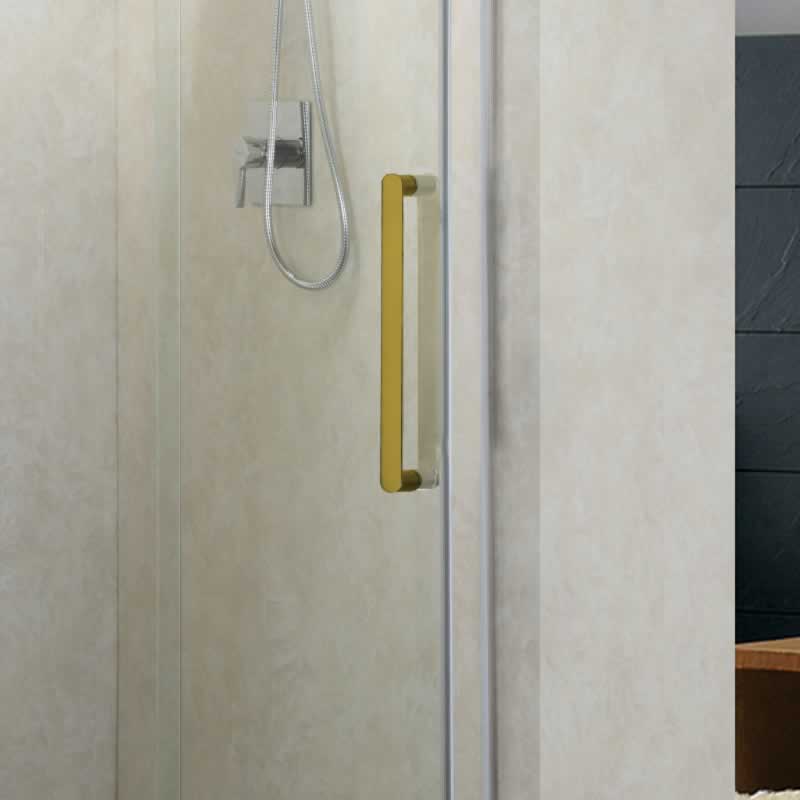

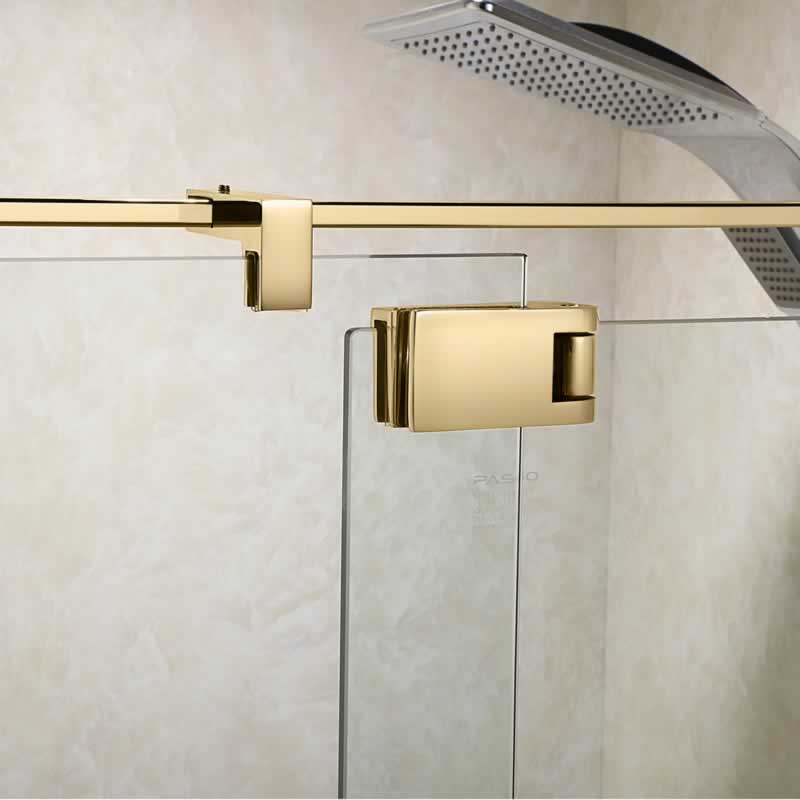

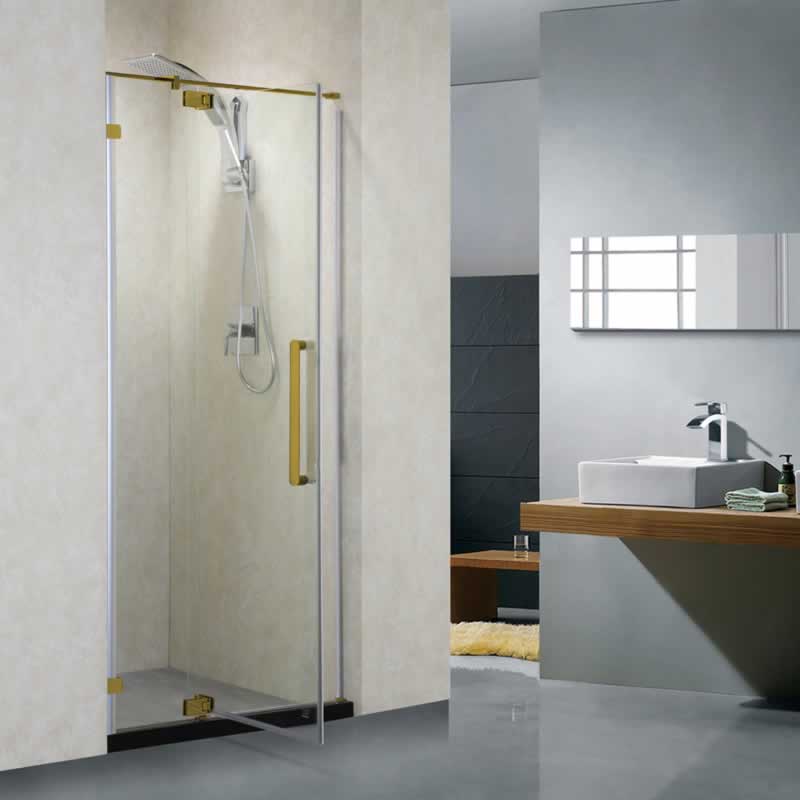

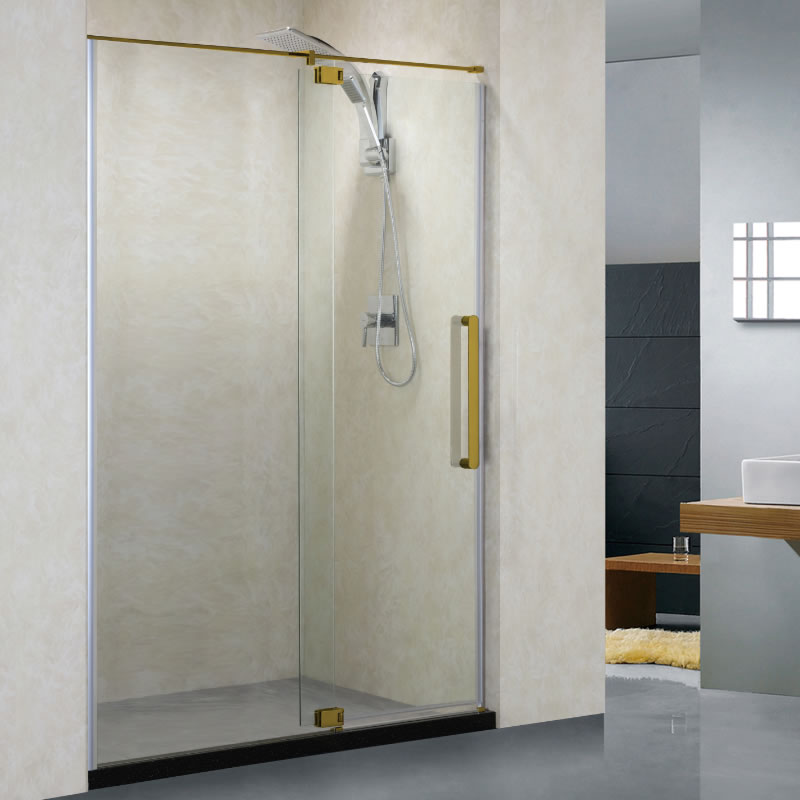

Brushed Gold

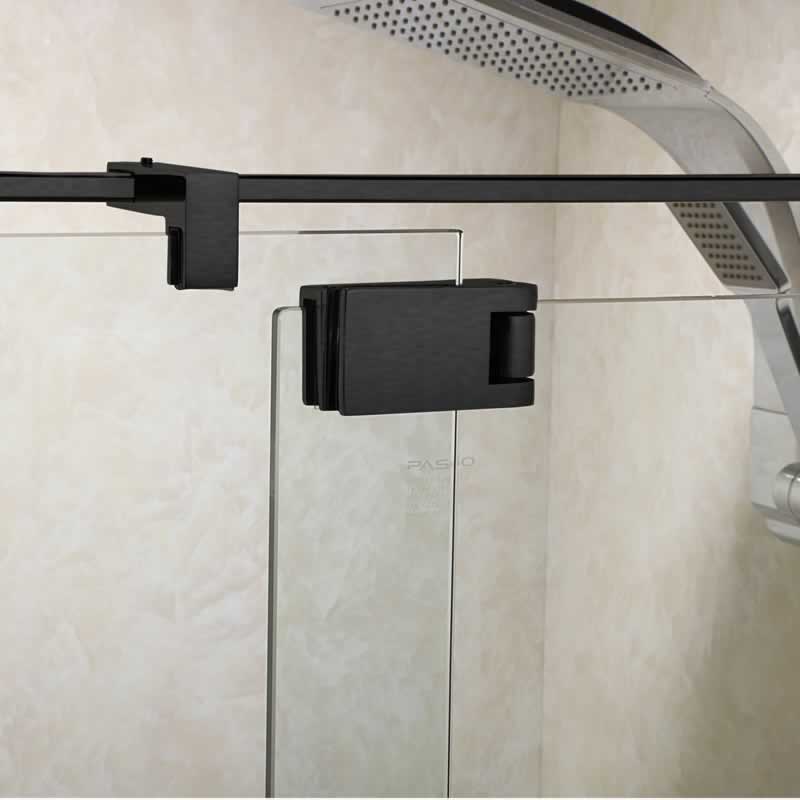

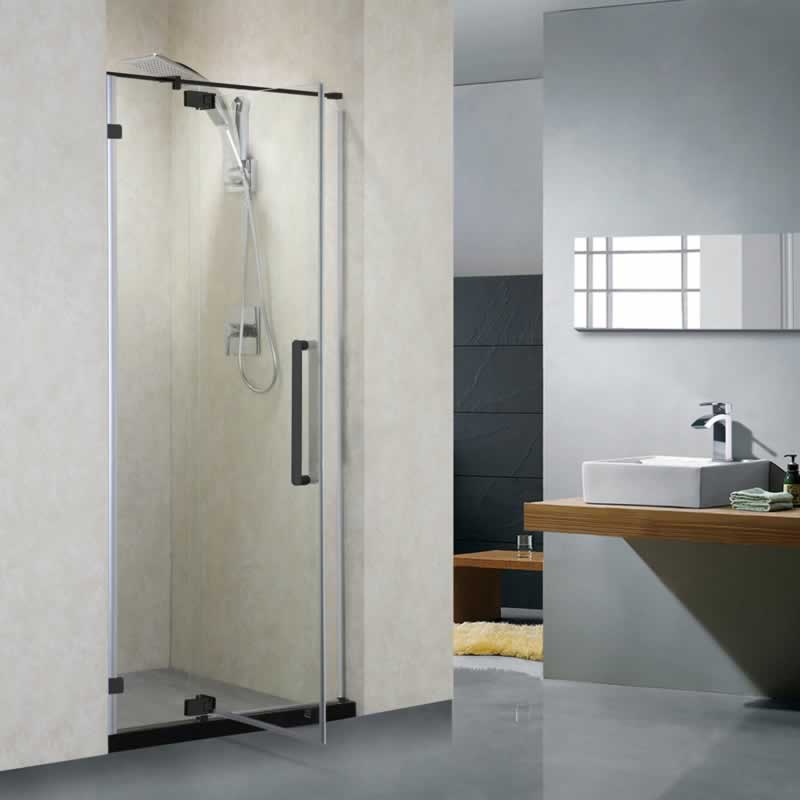

Matte Black

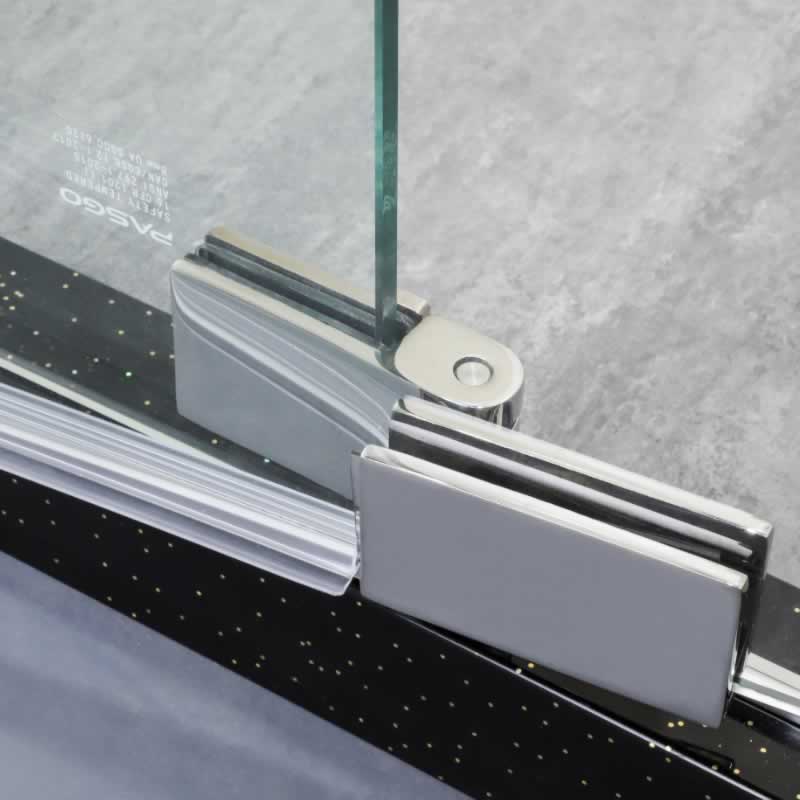

- Anti-splash guard to prevent water spills
- IMPORTANT! All measurements should be taken only AFTER walls are
finished (tile, back walls, etc.)
- Professional installation is required

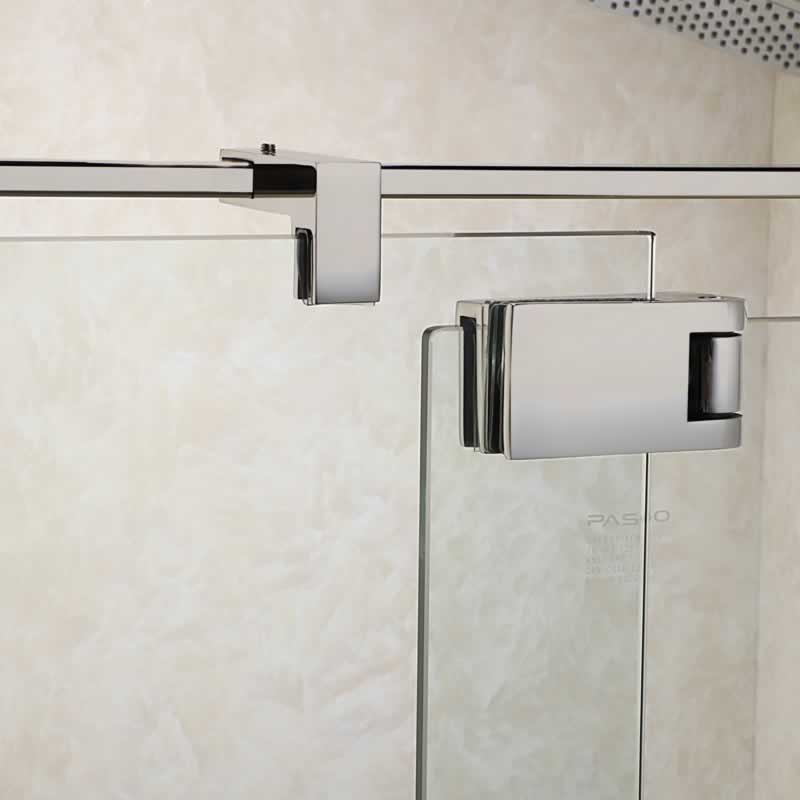

- Specially designed rollers
create a smooth, quiet gliding operation
- Large wheel assembly creates effortless sliding action
- ATTENTION! This model has NO adjustment for out-of-plumb (uneven) walls

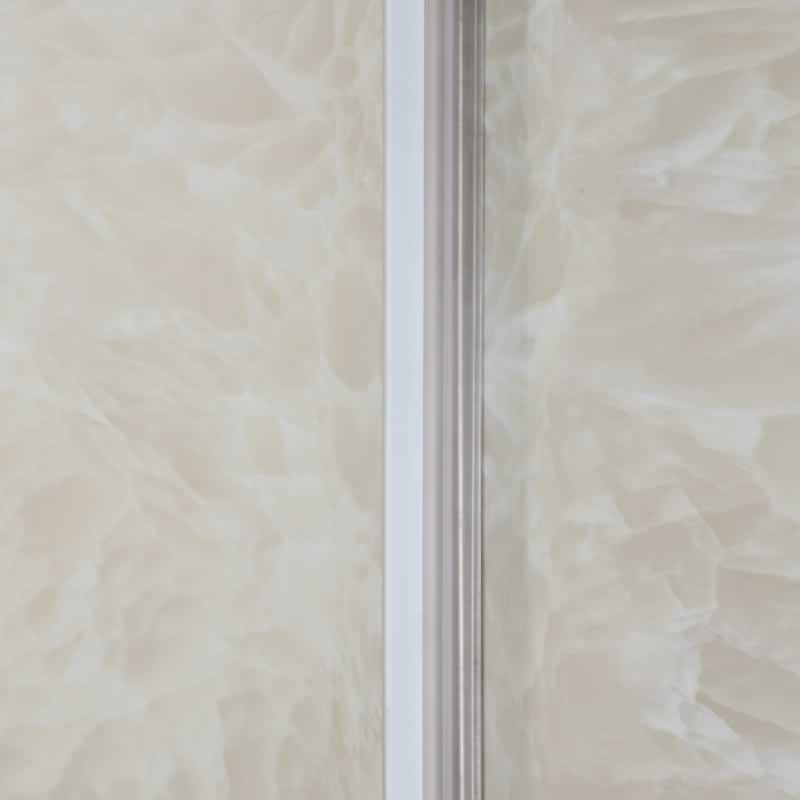

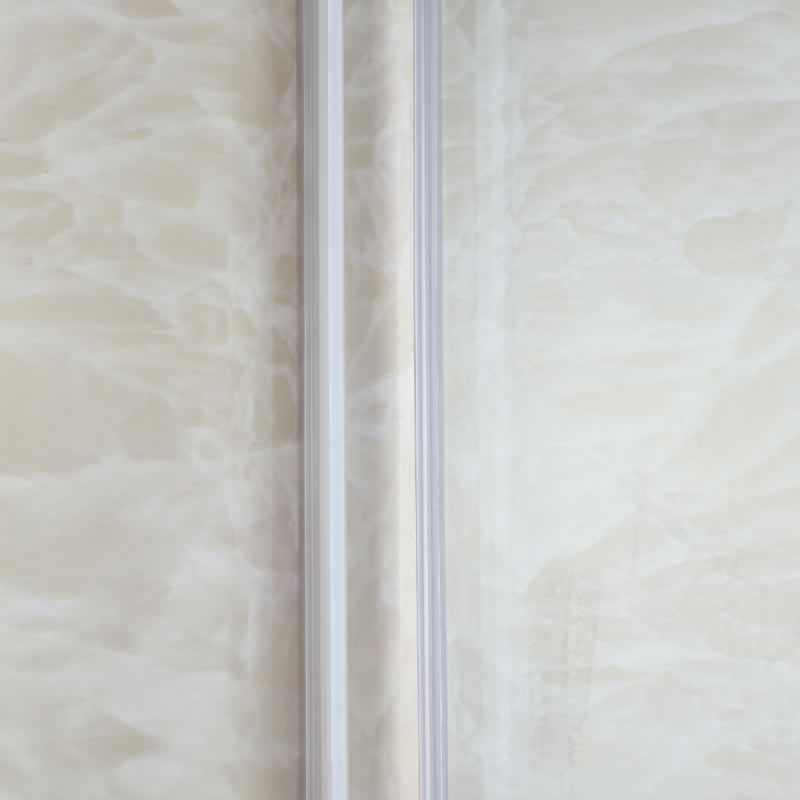

- Wall profiles accommodate up to 3/8 in. for out-of-plumb (uneven walls)
- PASGO Shower Doors have ten years Limited Manufacturer Warranty (Brushed Gold and Matte
Black finishes limited to 1 (one) year warranty)
