Key Features:

• Covered under PASGO's Limited Lifetime and 5 Years Limited Warranty
• A frameless design gives a modern, sleek look to the shower
• Door opens to the left or right depending upon installation configuration
• All hardware required for installation of shower door is included
• This is a shower door only - a shower base and walls may be required to complete unit
• NOTE: The biggest challenge in selecting the correct shower door is determining the finished opening width - be sure your desired opening measures between the "Adjustment Calculations" note below

Specifications:

• Model:LY1206

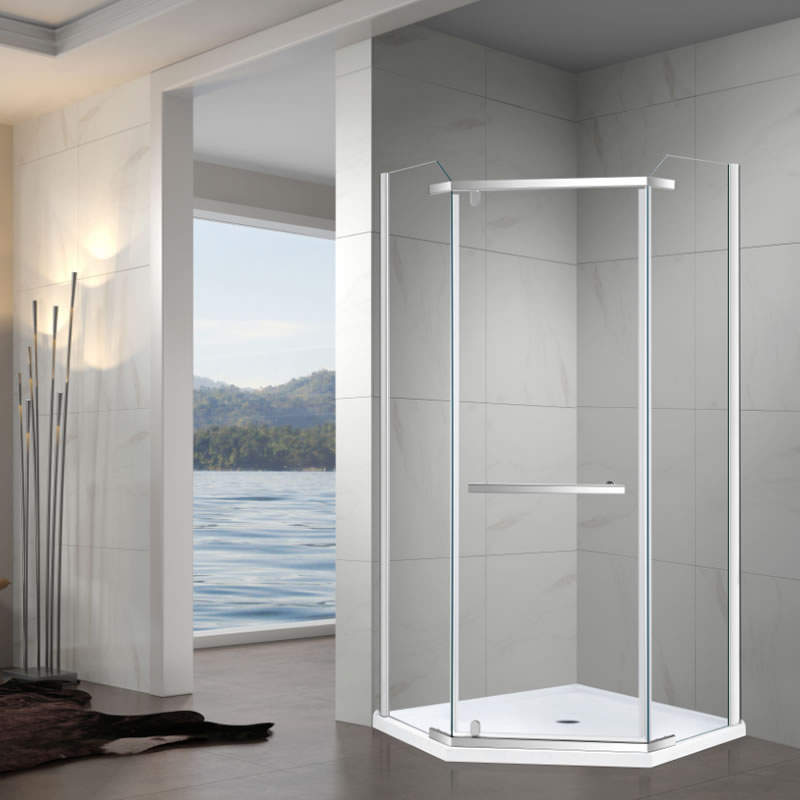

• Shower Door Type: Neo-Angle Semi-Frameless Pivot Shower Enclosure

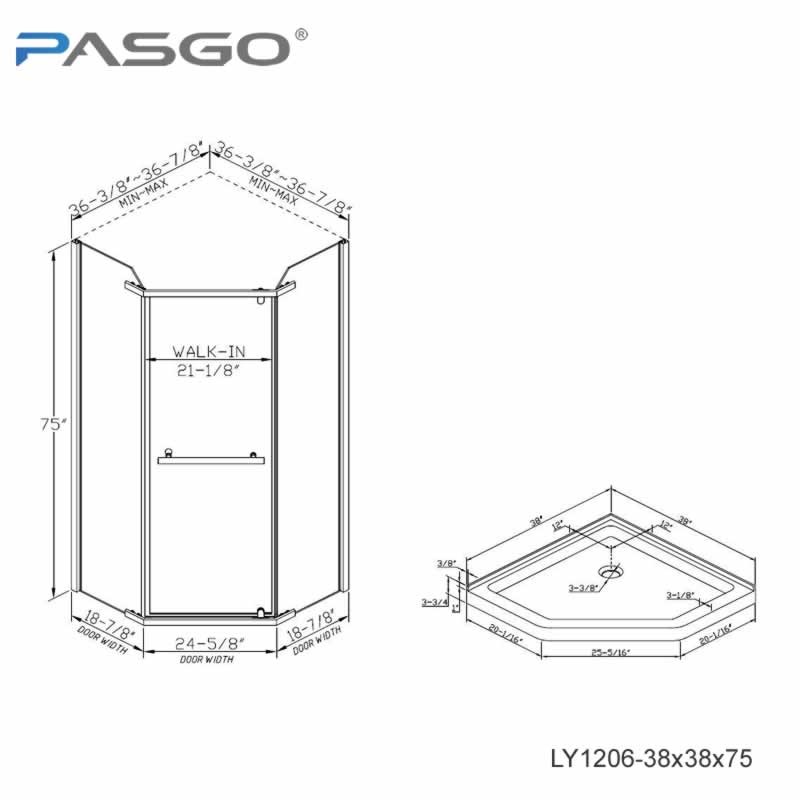

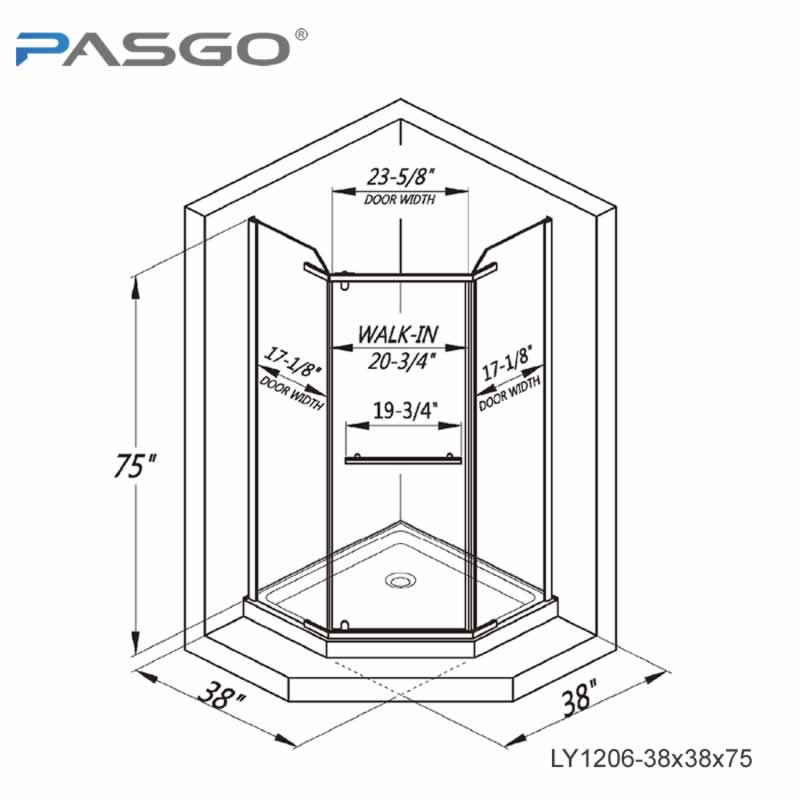

• Available Sizes: 38x38x75 ”
• Available Finishes: Polished Chrome (PC), Brushed Nickel (BN), Matte Black (MB), Brushed Gold (BG)
• Hardware Material: Stainless steel
• Installation: Professional assembly required
• Panel Thickness: 5/16 in. (8mm)
• Number of Panels: 3
• ADJUSTMENT: This model has NO adjustment for out-of-plumb (uneven) walls.

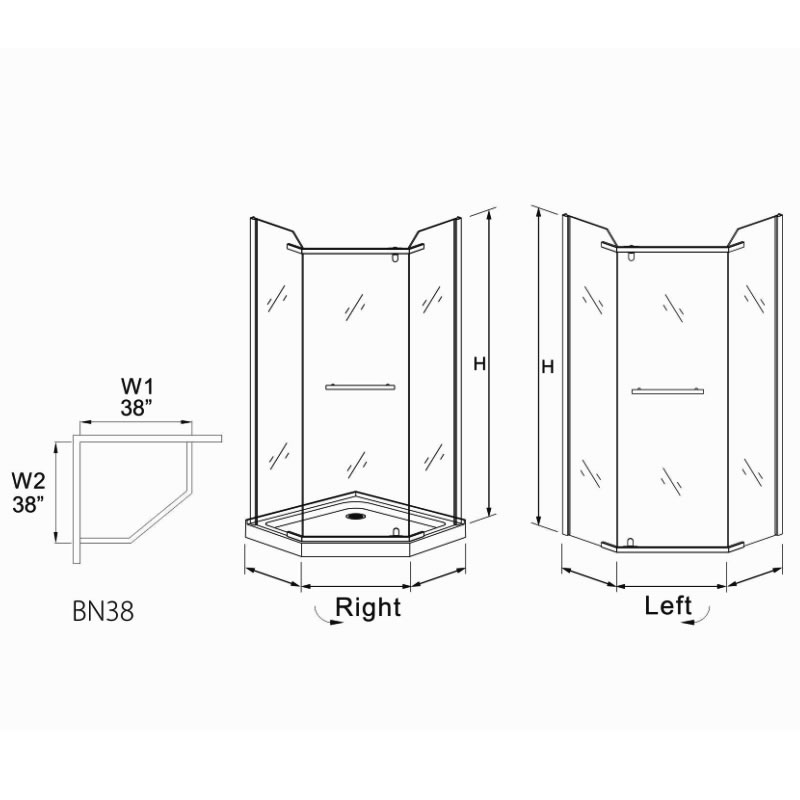

• SHOWER BASE: Matching Acrylic Neo angle shower base (Model: BN38) is available for the shower enclosure.

WARNING

Safety Film – Care and Maintenance Instructions

The glass is equipped with a water-resistant safety film designed to help hold glass fragments together in the event of breakage.

To maintain the performance of the safety film, please use and maintain the product at room temperature and avoid exposure to the following:

• Abrasive cleaning powders
• Gasoline, paint thinners, and other harsh solvents
• Strong acidic cleaners
• Alcohol, oils, and other potentially damaging chemicals
• Open flames and excessive heat
• Abrasive brushes, steel wool, and sharp objects

Care and Maintenance

1.Cleaning: Clean the surface using a soft, clean cloth or sponge with mild soap and water or a neutral-pH cleaner.

2.Surface Protection: Do not scratch, scrape, or rub the film surface with sharp or abrasive objects.

3.Metal Contact Protection: Use soft rubber pads or appropriate protective materials wherever the glass comes into contact with metal components to prevent direct contact and potential damage.

4.Transportation and Installation: During transportation and installation, protect the glass and safety film with soft, suitable packaging materials to prevent scratches, impact damage, or other surface damage.
